Alira X

A Reflection of Quality

Features Reviews Controllers Technologies Tech Specs Brochures

ALIRA X

  • Available in
    Reverse Cycle (Heating or Cooling)
    Cooling Only
  • Capacities
    Reverse Cycle: 2.2kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW
    Cooling Only: 2.2kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW
  • Refrigerant
    R32

Alira X is a step ahead of the rest, delivering a perfect fusion of whisper quiet comfort, industry leading energy efficiency and indoor air quality technology.

Warranty info

Sensitive Choice
A Sensitive
Smart Choice
learn more

Approved by the National Asthma Council Australia, Daikin air purifiers and split systems are authorised to display the Sensitive Choice butterfly symbol.

Key Features

It's the unique features of Daikin products that makes us the world leader.

White
  • Perfect fusion

    Perfect Fusion

    New R32 Alira X is a perfect blend of progressive design aesthetic, superior energy performance & indoor air quality technology.

  • Advanced purification

    Advanced Purification

    Each model is fitted with three layers of filtration, prefilter for large particulates, enzyme blue deodorising filter for odours and Daikin’s Streamer Technology for powerful oxidative decomposition of pollutants.

  • WiFI

    Built In Wi-Fi

    Wi-Fi module for connection to Daikin's Mobile Controller smartphone interface is now conveniently included inside the casing of the indoor unit.

  • Mould-proof operation

    Mould-Proof Operation

    Activates after cooling or dry operation to prevent the build up of mould and odour.*

  • Intelligent comfort

    Intelligent Comfort

    The 2-Area Intelligent Eye** is so clever it can now either direct airflow towards you or away from you for draught free comfort. If the room is unoccupied the unit will automatically enable energy saving operations.

  • Conanda-Airflow

    Coanda Airflow

    Discharge louvres designed to stream air along the ceiling for longer throws and delivering rapid cooling and even temperature distribution.

* Mould-proof operation function can be toggled (On/Off) via the wireless controller
**2-Area Intelligent Eye only applicable to 20-46 Class Models.

R32 Refrigerant
R32 Refrigerant
More Info

Mindful of the environment and climate impact of its products, Daikin has taken the lead when it comes to shifting to refrigerants with a lower environmental impact.

Learn More

Streamer Technology - The Three C's

  • 1. Clash

    Decomposes harmful substances trapped by the High Efficiency Particulate Filter.

  • 2. Cycle

    Maintains the deodorising filter’s deodorising capacity by assisting odour decomposition.

  • 3. Clean

    Removes bacteria from all filters allowing them to be maintenance free and increasing filter longevity.

The secret to high performance air purification is Daikin’s Streamer Technology. This innovative technology features a high-power plasma discharge that generates high-speed electrons to decompose harmful substances. This powerful oxidative decomposition process continuously removes odours, bacteria and indoor air pollutants, such as formaldehyde, for superior air purification.

Daikin Connect Step 1. Size & Order
Streamer emits high-speed electrons.
Daikin Connect Step 2. Dealer Inspection
The electrons collide and combine with nitrogen and oxygen in the air to form four kinds of elements with powerful oxidative decomposition capabilities.
Daikin Connect Step 3. Installation
These elements break down unwanted substances.

How effective is Daikin Streamer Technology?

Eliminates
Pollen

More than 99.6%1 in 2 hours

Eliminates
Mould

More than 99.9%2 in 24 hours

Eliminates
Allergens

More than 99.61%1 in 24 hours

  1. Verified at Wakayama Medical University with the following test condition: Irradiated allergens with Streamer & checked decomposition of allergen proteins by either the ELISA method, electrophoresis or electron microscopy.
  2. Verified at Japan Food Research Laboratories using antibacterial test/mould elimination test (test number: 204041635-001).

Controllers

Backlit Wireless Remote Controller (Alira X)
Operation-Timers

Operation Timers

Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.

Outdoor Quiet Mode

Quiet Mode

Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.

Comfort-Mode

Comfort Mode

Airflow is optimised to stream upwards during cooling and downwards during heating.

Inverter Powerful Operation

Powerful Mode

Gives a boost in cooling or heating for 20 minutes beyond normal capacity.

Program Dry Function

Program Dry Function

Automatic intelligent airflow and temperature control to reduce room humidity.

Econo-Mode

Econo Mode

Power consumption of the system is limited to prevent tripping your circuit breaker.

Daikin Mobile Controller (included)
Smartphone Control (Optional)

Direct Connection

For locations without a Wi-Fi network, the app can wirelessly connect directly to the a wireless LAN adaptor equipped air conditioner, when in range.

Smartphone Control (Optional)

Wi-Fi Connection

A LAN equipped air conditioner can easily be joined to a local Wi-Fi network. Once connected, the system can be controlled from any networked Android or iOS device.

Smartphone Control (Optional)

Internet Connection

All you need is a permanent internet connection for your Wi-Fi network, and an internet connection for your phone or tablet and you can monitor and control your system from virtually anywhere.

Backlit Wireless Remote Controller (Alira X)

Daikin Mobile Controller (included)

5 year
5 Year Warranty
learn more

Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia

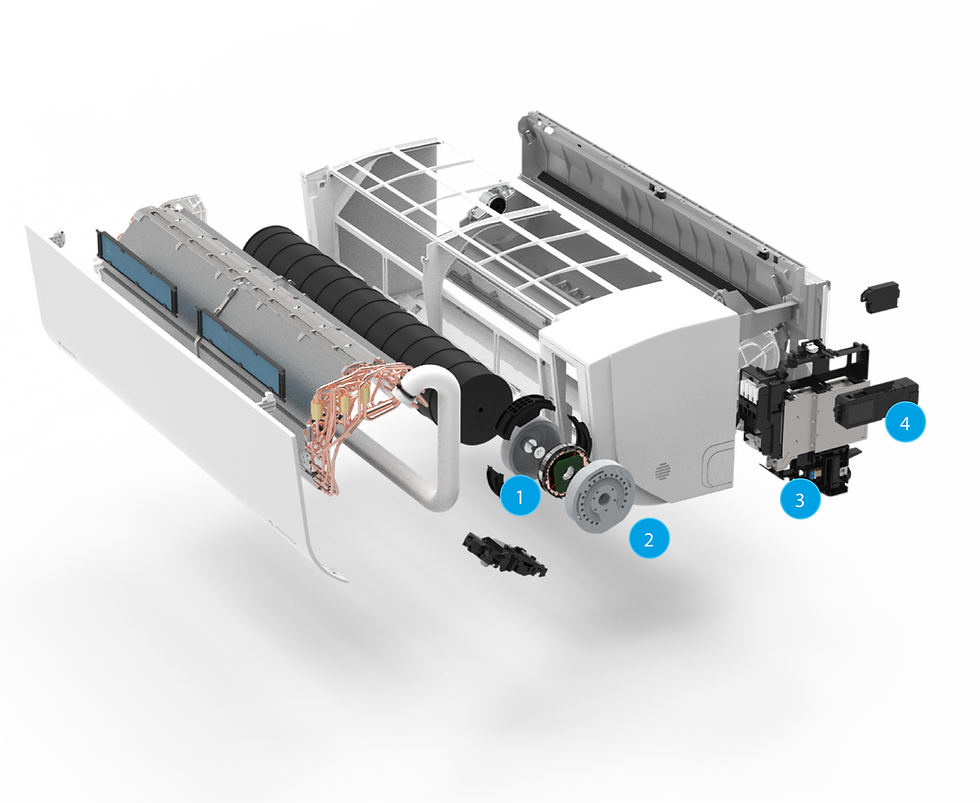

Alira X Technology

1 2 3 4

Technical Specifications

Available Options:

  • System: Reverse Cycle or Cooling Only
  • Capacities: Reverse Cycle: 2.2kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW, Cooling Only: 2.2kW, 2.5kW, 3.5kW, 4.6kW, 5.0kW, 6.0kW, 7.1kW
  • Indoor Type: Wall Mounted
  • Power Supply: 1 Phase, 220-240, 50Hz
  • Refrigerant: R32

Show Full Tech Specs

  • Reverse Cycle
  • Cooling Only
Indoor Unit FTXM20WVMA FTXM25WVMA FTXM35WVMA FTXM46WVMA FTXM50WVMA FTXM60WVMA FTXM71WVMA
Outdoor Unit RXM20WVMA RXM25WVMA RXM35WVMA RXM46WVMA RXM50WVMA RXM60WVMA RXM71WVMA
Rated Capacity Cool (kW) 2.2 2.5 3.5 4.6 5.0 6.0 7.1
Heat (kW) 2.7 3.2 3.7 4.7 6.0 7.2 8.0
Capacity Range Cool (kW) 1.1-2.8 1.1-3.7 1.1-4.2 0.9-5.5 1.1-6.7 1.1-7.5 2.0-8.9
Heat (kW) 1.1-4.4 1.1-5.4 1.1-5.5 1.0-6.7 1.0-8.0 1.0-9.8 2.0-10.8
Indoor Airflow Rate (H) Cool (l/s) 228 242 242 253 342 395 410
Heat (l/s) 223 223 242 250 342 395 410
Indoor Fan Speeds 5 steps, quiet and automatic
Star Rating (Hot/Avg/Cold)
ZERL (Residential)		 Cool 6/5.5/5.5 6/5.5/6 5/5/5 4.5/4/4.5 5.5/5/5 4.5/4.5/5 4/3/3.5
Heat 3.5/3.5/3 4/3.5/3 3.5/3.5/3 4/3.5/3 4/3.5/3 4/3/2.5 3.5/3/2.5
Front Panel Colour White
Power Supply 1 phase, 220-240V, 50Hz
Power Input (Rated) Cool (kW) 0.42 0.47 0.80 1.17 1.13 1.48 2.00
Heat (kW) 0.50 0.64 0.76 1.04 1.23 1.61 1.96
E.E.R/C.O.P Cool/Heat 5.30/5.40 5.38/5.00 4.38/4.89 3.95/4.52 4.42/4.88 4.05/4.47 3.55/4.08
TCSPF (Residential) Hot/Avg/Cold 7.87/7.15/7.39 7.95/7.29/7.55 6.98/6.61/6.96 6.09/5.71/6.06 7.00/6.56/6.99 6.49/6.11/6.55 5.50/4.87/5.07
HSPF (Residential) Hot/Avg/Cold 5.34/5.13/4.76 5.50/5.12/4.71 5.44/5.02/4.50 5.61/5.03/4.52 5.84/5.25/4.60 5.50/4.90/4.26 5.10/4.54/4.00
A.E.E.R/A.C.O.P Cool/Heat 5.25/5.36 5.33/4.97 4.36/4.86 3.94/4.50 4.41/4.86 4.04/4.46 3.54/4.07
Dimensions (HxWxD) Indoor (mm) 299x920x275 299x1100x275
Outdoor (mm) 550x675x284 695x930x350
Weight Indoor (kg) 13 13 13 13 15 15 15
Outdoor (kg) 28 30 30 51 54 54 60
Compressor Type Hermetically Sealed Swing Type
Refrigerant Type R32
Max Pipe Length (m) 20 20 20 30 30 30 30
Max Level Difference (m) 15 15 15 20 20 20 20
Pipe Sizes Liquid (mm) 6.4 6.4 6.4 6.4 6.4 6.4 6.4
Gas (mm) 9.5 9.5 9.5 12.7 12.7 12.7 15.9
Outdoor Operating Range Cool (°CDB) -10 to 46
Heat (°CWB) -15 to 18
Indoor Sound Level (H/SL) Cool (dBA) 39/19 41/19 42/19 43/26 45/28 48/29 49/30
Heat (dBA) 39/20 40/20 42/20 43/26 45/28 48/29 49/30
Outdoor Sound Level (H/SL) Cool (dBA) 46/43 47/43 49/44 47/44 47/44 49/45 53/49
Heat (dBA) 47/44 48/44 49/45 48/45 48/45 52/45 54/49
Outdoor EPA Sound Power Level (H) Cool (dBA) 58 59 61 59 59 61 65
Heat (dBA) 59 60 61 60 60 64 66
Indoor Unit FTKM20WVMA FTKM25WVMA FTKM35WVMA FTKM46WVMA FTKM50WVMA FTKM60WVMA FTKM71WVMA
Outdoor Unit RKM20WVMA RKM25WVMA RKM35WVMA RKM46WVMA RKM50WVMA RKM60WVMA RKM71WVMA
Rated Capacity Cool (kW) 2.2 2.5 3.5 4.6 5.0 6.0 7.1
Capacity Range Cool (kW) 1.1-2.8 1.1-3.7 1.1-4.2 0.9-5.5 1.1-6.7 1.1-7.5 2.0-8.9
Indoor Airflow Rate (H) Cool (l/s) 228 242 242 253 342 395 410
Indoor Fan Speeds 5 steps, quiet and automatic
Star Rating (Hot/Avg/Cold)
ZERL (Residential)		 Cool 6/5.5/5.5 6/5.5/6 5/5/5 4.5/4/4.5 5.5/5/5 4.5/4.5/5 4/3/3.5
Front Panel Colour White
Power Supply 1 phase, 220-240V, 50Hz
Power Input (Rated) Cool (kW) 0.42 0.47 0.80 1.17 1.13 1.48 2.00
E.E.R Cool 5.3 5.38 4.38 3.95 4.42 4.05 3.55
TCSPF (Residential) Hot/Avg/Cold 7.87/7.15/7.39 7.95/7.29/7.55 6.98/6.61/6.96 6.09/5.71/6.06 7.00/6.56/6.99 6.49/6.11/6.55 5.50/4.87/5.07
A.E.E.R Cool 5.25 5.33 4.36 3.94 4.41 4.04 3.54
Dimensions (HxWxD) Indoor (mm) 299x920x275 299x1100x275
Outdoor (mm) 550x675x284 695x930x350
Weight Indoor (kg) 13 13 13 13 15 15 15
Outdoor (kg) 28 30 30 51 54 54 60
Compressor Type Hermetically Sealed Swing Type
Refrigerant Type R32
Max Pipe Length (m) 20 20 20 30 30 30 30
Max Level Difference (m) 15 15 15 20 20 20 20
Pipe Sizes Liquid (mm) 6.4 6.4 6.4 6.4 6.4 6.4 6.4
Gas (mm) 9.5 9.5 9.5 12.7 12.7 12.7 15.9
Outdoor Operating Range Cool (°CDB) -10 to 46
Indoor Sound Level (H/SL) Cool (dBA) 39/19 41/19 42/19 43/26 45/28 48/29 49/30
Outdoor Sound Level (H/SL) Cool (dBA) 46/43 47/43 49/44 47/44 47/44 49/45 53/49
Outdoor EPA Sound Power Level (H) Cool (dBA) 58 59 61 59 59 61 65
