Inverter Ducted
-
Available inReverse Cycle (Heating & Cooling)
-
Capacities5.0kW, 6.0kW, 7.1kW, 8.5kW, 10.0kW, 12.5kW, 14.0kW, 15.5kW, 18.0kW, 19.5kW, 20.0kW, 23.5kW
-
Refrigerant5.0-15.5kW: R32 / 18.0-23.5kW: R410A
Engineered to deliver a compact and efficient design, our Inverter series is ideal for installation into the tight roof space of any modern home and now also features R22 retrofit capability for 5.0-15.5kW models.
Minimum Energy
Performance Standards
learn morePerformance Standards
All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
Key Features
It's the unique features of Daikin products that makes us the world leader.
-
Improved Energy Efficiency
Achieved through the use of a DC Fan motor, cross-pass heat exchanger and increased outdoor coil passes.
-
Compact Indoor Unit
Low profile height of ≤360mm to fit comfortably into the tight roof space of a modern home.
-

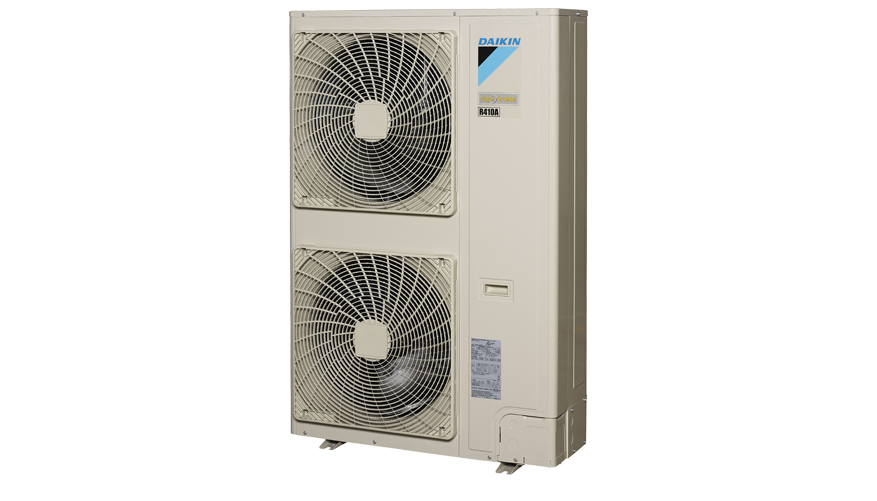

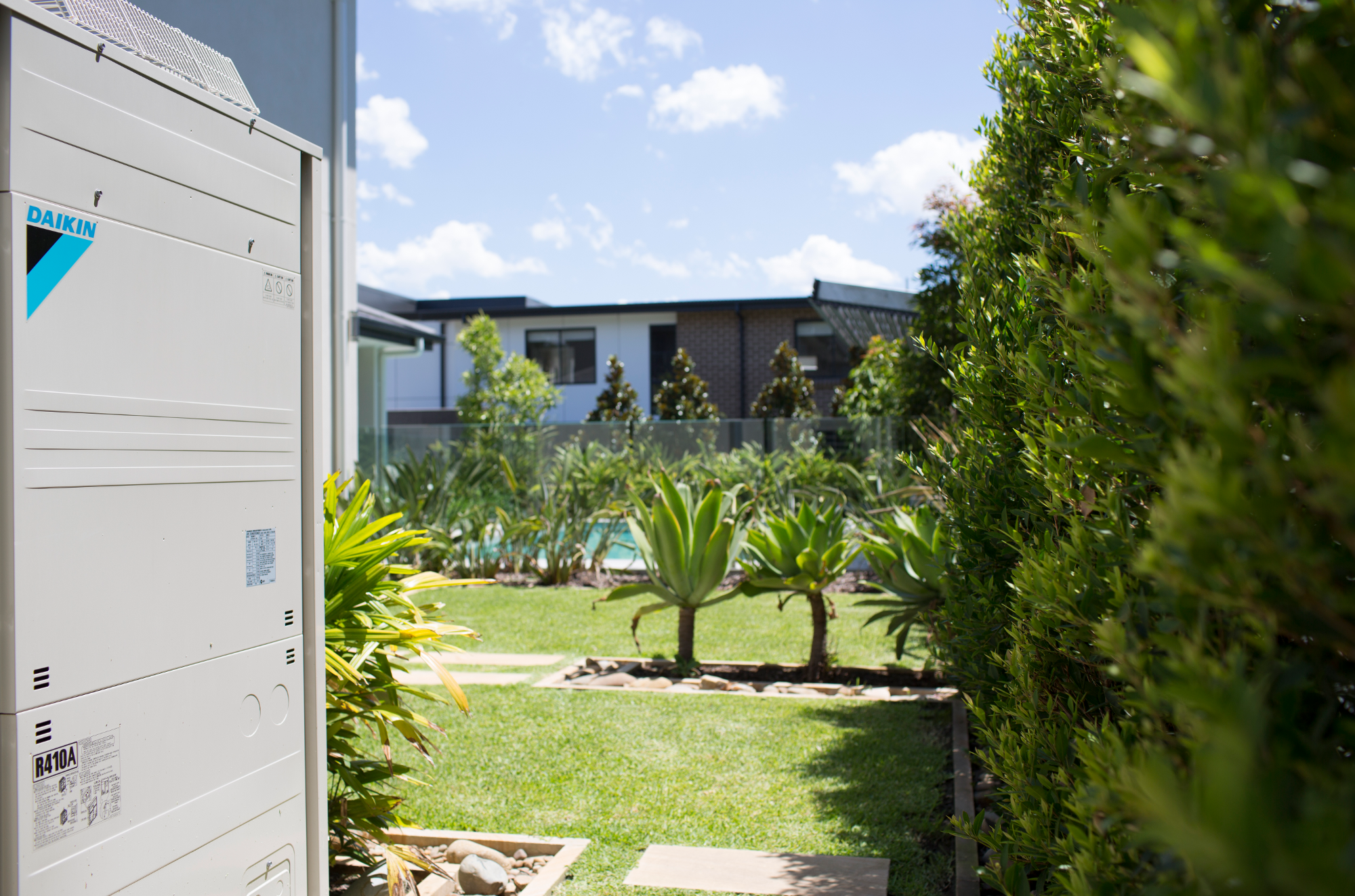

Space Saving Outdoor Unit
Models up to 19.5kW are encased in a space saving side discharge outdoor unit allowing for flexible placement.
-
Night Quiet Mode
Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.
-
R22 Retrofit Capability
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (5.0-15.5kW Models).
-
Australian Made
Indoor units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate.
R32 Refrigerant
More Info

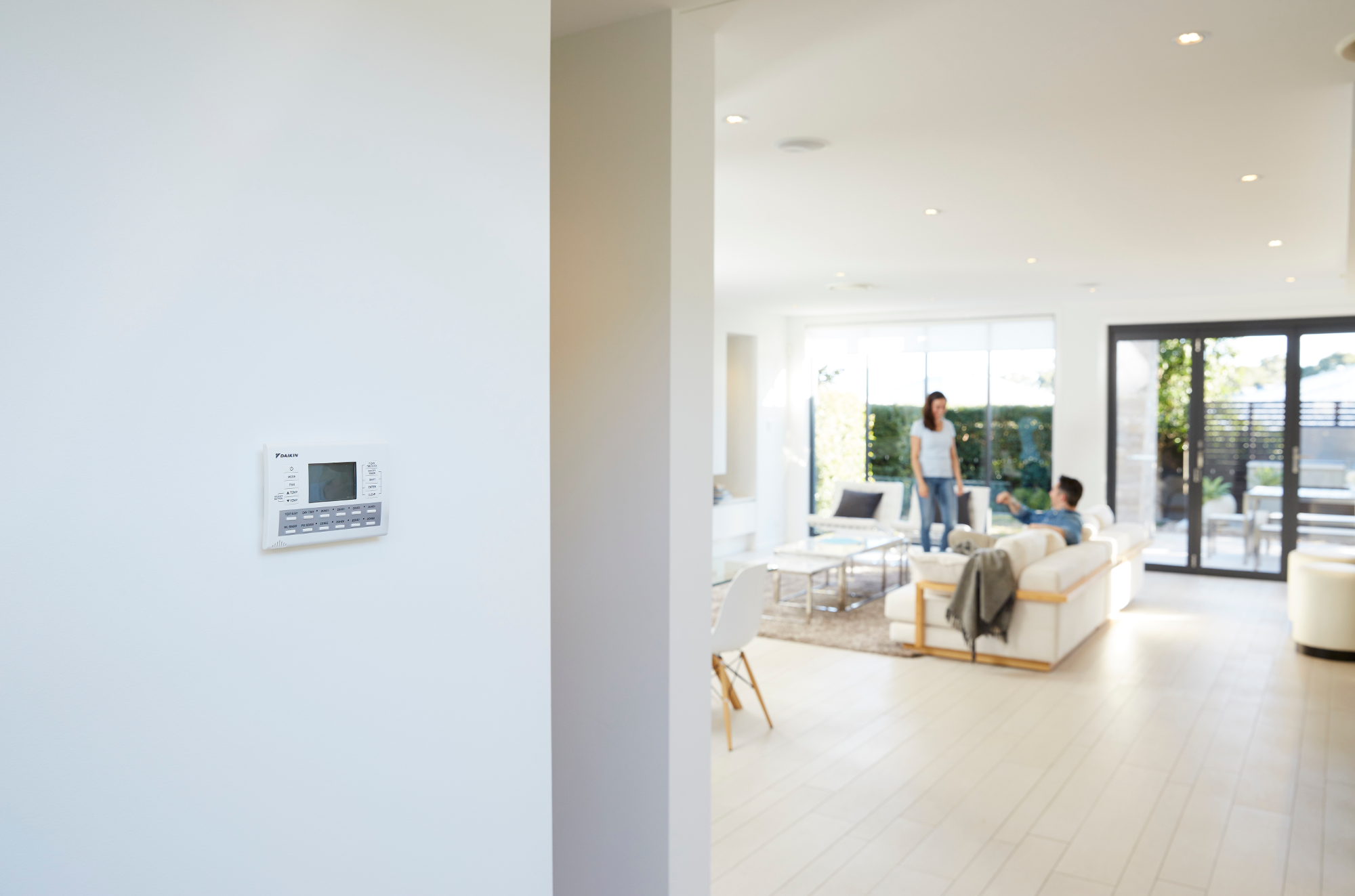

Controllers
Backlit Display
Clear large, easy to read text with a intuitive interface.
Weekly Schedule Timer
Program on and off times to suit your lifestyle.
Home Leave Function
Automatically turns your air conditioner on when the room temperatures drops below 10°C.
Quick Cool/Heat Mode
Temporarily increase air conditioning power to rapidly reach your desired set point temperature.
Temperature Limit
Predefine a temperature range for cooling or heating cycles for reduced energy consumption.
Off Timer Feature
Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).
Countdown On/Off Timer
Quick and easy means to set up the operations of your unit.
Backlit Display
Clear large, easy to read text with a intuitive interface.
Multiple Zone Control
Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Requires Zone Controller)
7 Day Time Clock
Program on and off times, including when to open/close zones and the temperature sensor to use.
Automatic Mode Changeover
Allows the unit to automatically switch between heating and cooling for year round comfort.
Filter Cleaning Reminder
Automatic notification when filter cleaning may be required.
Countdown On/Off Timer
Quick and easy means to set up the operations of your unit.
Filter Cleaning Reminder
Automatic notification when filter cleaning may be required.
Operation Mode Theming
Each operation is colour-coded for easy association
Multiple Zone Control
Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Requires Zone Controller)
Zone On / Off
Turn on or off the zones in your home (requires Zone Controller)
Enter Zone Names
Customize the name of the zones through your home. (Zone Controller Required)
5 Year Warranty
learn more
Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia
INVERTER DUCTED Technology
Technical Specifications
Available Options:
- System: Reverse Cycle
- Capacities: 5.0kW, 6.0kW, 7.1kW, 8.5kW, 10.0kW, 12.5kW, 14.0kW, 15.5kW, 18.0kW, 19.5kW, 20.0kW, 23.5kW
- Indoor Type: Ducted
- Power Supply: 1 Phase, 220-240v, 50Hz or 3 Phase, 380-415v, 50Hz
- Refrigerant: 5.0-15.5kW: R32 / 18.0-23.5kW: R410A
- Single Phase
- Three Phase
| Indoor Unit | FDYAN50AV1 | FDYAN60AV1 | FDYAN71AV1 | FDYAN85AV1 | FDYAN100AV1 | FDYAN125AV1 | FDYAN140AV1 | FDYAN160AV1 | |
| Outdoor Unit | RZA50CV1 | RZA60CV1 | RZA71CV1 | RZA85CV1 | RZA100CV1 | RZA125CV1 | RZA140CV1 | RZA160CV1 | |
| Rated Capacity | Cool (kW) | 5.0 | 6.0 | 7.1 | 8.5 | 10.0 | 12.5 | 14.0 | 15.5 |
| Heat (kW) | 6.0 | 7.0 | 7.5 | 10.0 | 12.5 | 15.0 | 16.5 | 18.0 | |
| Capacity Range | Cool (kW) | 1.4-6.0 | 1.4-7.1 | 1.8-8.0 | 3.2-10.0 | 3.2-11.2 | 4.0-14.0 | 5.0-16.0 | 7.3-16.3 |
| Heat (kW) | 1.4-7.1 | 1.4-8.0 | 2.0-9.0 | 3.5-11.2 | 3.5-14.0 | 4.1-16.0 | 5.1-18.0 | 7.3-18.2 | |
| Power Input (Rated) | Cool (kW) | 1.35 | 1.78 | 2.20 | 2.53 | 3.10 | 3.94 | 4.30 | 4.95 |
| Heat (kW) | 1.62 | 1.95 | 1.93 | 2.80 | 3.35 | 4.00 | 4.50 | 4.90 | |
| E.E.R/C.O.P | C/H | 3.70/3.70 | 3.37/3.59 | 3.23/3.89 | 3.36/3.57 | 3.23/3.73 | 3.17/3.75 | 3.26/3.67 | 3.13/3.67 |
| TCSPF (Residential) | Hot/Average/Cold | 4.43/3.74/3.68 | 4.36/3.77/3.78 | 4.43/3.88/3.94 | 4.29/3.85/3.90 | 4.28/3.88/3.97 | 4.26/3.91/4.02 | 4.19/3.87/3.97 | 4.05/3.76/3.87 |
| HSPF (Residential) | Hot/Average/Cold | 4.51/4.02/3.49 | 4.46/3.76/3.15 | 4.17/3.85/3.41 | 3.97/3.67/3.32 | 3.85/3.48/3.04 | 4.31/3.31/2.77 | 3.90/3.51/3.05 | 3.87/3.53/3.12 |
| Airflow Rate (Nominal/Max) | l/s | 315/370 | 340/400 | 425/566 | 580/600 | 680/800 | 755/840 | 900/1000 | 950/1120 |
| Indoor Sound Level (H) @ 1.5m | dBA (C/H) | 33.3/35.0 | 34.1/35.9 | 37.3/40.5 | 42.0/42.4 | 43.5/45.8 | 44.2/45.5 | 46.6/47.9 | 47.9/50.7 |
| Piping Length | m | 50 | |||||||
| Indoor Fan Speeds | H/M/L | ||||||||
| Dimensions (HxWxD) | Indoor (mm) | 300x1210x900 | 360x1520x935 | ||||||
| Outdoor (mm) | 595x845x300 | 990x940x320 | 1430x940x320 | ||||||
| Weight | Indoor (kg) | 37 | 37 | 40 | 40 | 45 | 55 | 55 | 56 |
| Outdoor (kg) | 45 | 45 | 45 | 69 | 69 | 78 | 93 | 99 | |
| Power Supply | V/Hz | 1 Phase, 220-240V, 50Hz | |||||||
| Compressor Type | Hermetically Sealed Swing Type | ||||||||
| Refrigerant | R32 | ||||||||
| Pipe Sizes | Liquid (mm) | 6.4 (Flare) | 9.5 (Flare) | ||||||
| Gas (mm) | 12.7 (Flare) | 15.9 (Flare) | |||||||
| Drain (mm) | ID 25 / OD 32 | ||||||||
| Supply Air Opening | mm (HxW, Flange) | 185x852 | 245x1152 | ||||||
| Return Air Opening | mm | 1x400 (Oval) | 2x350 (Oval) | 2x400 (Oval) | |||||
| Outdoor Operating Range | Cool (°CDB) | -5 to 46 | |||||||
| Heat (°CWB) | -15 to 16 | ||||||||
| EPA Sound Power Level | dBA | 68 | 68 | 68 | 70 | 71 | 72 | 73 | 75 |
| Outdoor Sound Level (H) @ 1m | Pressure dBA (C/H) | 48/51 | 48/51 | 48/51 | 51/54 | 52/54 | 53/56 | 54/56 | 56/58 |
| Indoor Unit | FDYAN71AV1 | FDYAN85AV1 | FDYAN100AV1 | FDYAN125AV1 | FDYAN140AV1 | FDYAN160AV1 | FDYQN180LCV1 | FDYQN200LCV1 | FDYQN250LBV1 | |
| Outdoor Unit | RZA71CY1 | RZA85CY1 | RZA100CY1 | RZA125CY1 | RZA140CY1 | RZA160CY1 | RZQ180MY1 | RZQ200MY1 | RZQ250LY1 | |
| Rated Capacity | Cool (kW) | 7.1 | 8.5 | 10.0 | 12.5 | 14.0 | 15.5 | 18.0 | 19.5 | 23.5 |
| Heat (kW) | 7.5 | 10.0 | 12.5 | 15.0 | 16.5 | 18.0 | 20.0 | 22.4 | 26.8 | |
| Capacity Range | Cool (kW) | 3.2-8.0 | 3.2-10.0 | 3.2-11.2 | 4.0-14.0 | 5.0-16.0 | 7.3-16.3 | 9.0-18.0 | 10.1-19.5 | 15.0-23.5 |
| Heat (kW) | 3.5-9.0 | 3.5-11.2 | 3.5-14.0 | 4.1-16.0 | 5.1-18.0 | 7.3-18.2 | 10.0-20.0 | 11.2-22.4 | 16.8-26.8 | |
| Power Input (Rated) | Cool (kW) | 2.20 | 2.53 | 3.10 | 3.94 | 4.30 | 4.95 | 5.82 | 6.11 | 7.85 |
| Heat (kW) | 1.93 | 2.80 | 3.35 | 4.00 | 4.50 | 4.90 | 6.11 | 6.85 | 8.47 | |
| E.E.R/C.O.P | C/H | 3.23/3.89 | 3.36/3.57 | 3.23/3.73 | 3.17/3.75 | 3.26/3.67 | 3.13/3.67 | 3.09/3.27 | 3.19/3.27 | 2.99/3.16 |
| TCSPF (Residential) | Hot/Average/Cold | 4.44/3.92/4.00 | 4.29/3.85/3.90 | 4.28/3.88/3.97 | 4.26/3.91/4.02 | 4.19/3.87/3.97 | 4.05/3.76/3.87 | 3.61/3.15/3.13 | 3.57/3.14/3.11 | 3.73/3.41/3.46 |
| HSPF (Residential) | Hot/Average/Cold | 4.17/3.90/3.55 | 3.97/3.67/3.32 | 3.85/3.48/3.04 | 4.31/3.31/2.77 | 3.90/3.51/3.05 | 3.87/3.53/3.12 | 3.23/2.95/2.61 | 3.25/2.97/2.63 | 3.41/3.08/2.72 |
| Airflow Rate (Nominal/Max) | l/s | 425/566 | 580/600 | 680/800 | 755/840 | 900/1000 | 950/1120 | 1160/1200 | 1400/1600 | 1400/1600 |
| Indoor Sound Level (H) @ 1.5m | dBA (C/H) | 37.3/40.5 | 42.0/42.4 | 43.5/45.8 | 44.2/45.5 | 46.6/47.9 | 47.9/50.7 | 45.0/45.0 | 46.0/46.0 | 49.5/49.5 |
| Piping Length | m | 50 | ||||||||
| Indoor Fan Speeds | H/M/L | |||||||||
| Dimensions (HxWxD) | Indoor (mm) | 300x1210x900 | 360x1520x935 | 470x1200x997 | 470x1400x997 | 500x1430x970 | ||||
| Outdoor (mm) | 990x940x320 | 1430x940x320 | 1680x930x765 | |||||||
| Weight | Indoor (kg) | 40 | 40 | 45 | 55 | 55 | 56 | 70 | 85 | 92 |
| Outdoor (kg) | 69 | 69 | 69 | 78 | 93 | 99 | 138 | 138 | 193 | |
| Power Supply | V/Hz | 3 Phase, 380-415V, 50Hz | ||||||||
| Compressor Type | Hermetically Sealed Swing Type | Hermetically Sealed Scroll Type | ||||||||
| Refrigerant | R32 | R410A | ||||||||
| Pipe Sizes | Liquid (mm) | 9.5 (Flare) | 9.5 (Brazed) | |||||||
| Gas (mm) | 15.9 (Flare) | 19.1 (Brazed) | 22.2 (Brazed) | |||||||
| Drain (mm) | ID 25/OD 32 | BSP 3/4 inch Internal Thread | ||||||||
| Supply Air Opening | mm (HxW, Flange) | 185x852 | 245x1152 | 350x918 | 350x1118 | 376x938 | ||||
| Return Air Opening | mm | 1x400 (Oval) | 2x350 (Oval) | 2x400 (Oval) | 393x918 (Flange) | 393x1118 (Flange) | 350x1118 (Flange) | |||
| Outdoor Operating Range | Cool (°CDB) | -5 to 46 | -5 to 43 | |||||||
| Heat (°CWB) | -15 to 16 | -20 to 16 | ||||||||
| EPA Sound Power Level | dBA | 67 | 70 | 71 | 72 | 73 | 75 | 72 | 74 | 79 |
| Outdoor Sound Level (H) @ 1m | Pressure dBA (C/H) | 48/50 | 51/54 | 52/54 | 53/56 | 54/56 | 56/58 | 57/58 | 58/59 | 57/58 |
Common Questions
We know you have questions.
Here are our most frequently asked questions and the answers that go with them.
- How do I choose the right size air conditioner for my home?
- What is an 'energy label'?
- How often should I clean the filters in my air conditioner?
- How do I clean the air filters in my air conditioner?
- Where can I purchase a Daikin air conditioner?
- Does Daikin provide after sales support?
- How reliable are Daikin air conditioners?
- What is cooling and heating capacity?
Ducted Systems

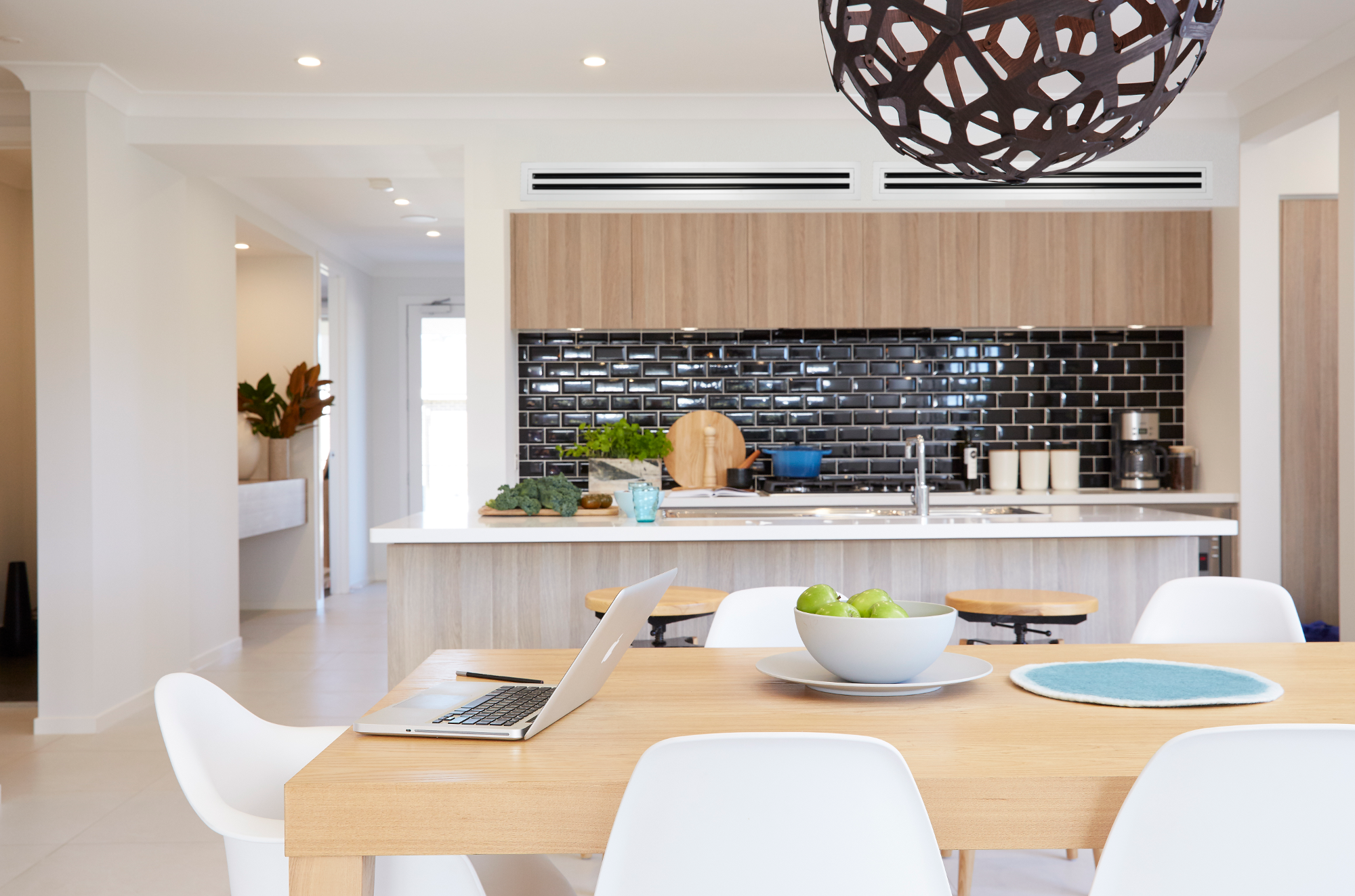

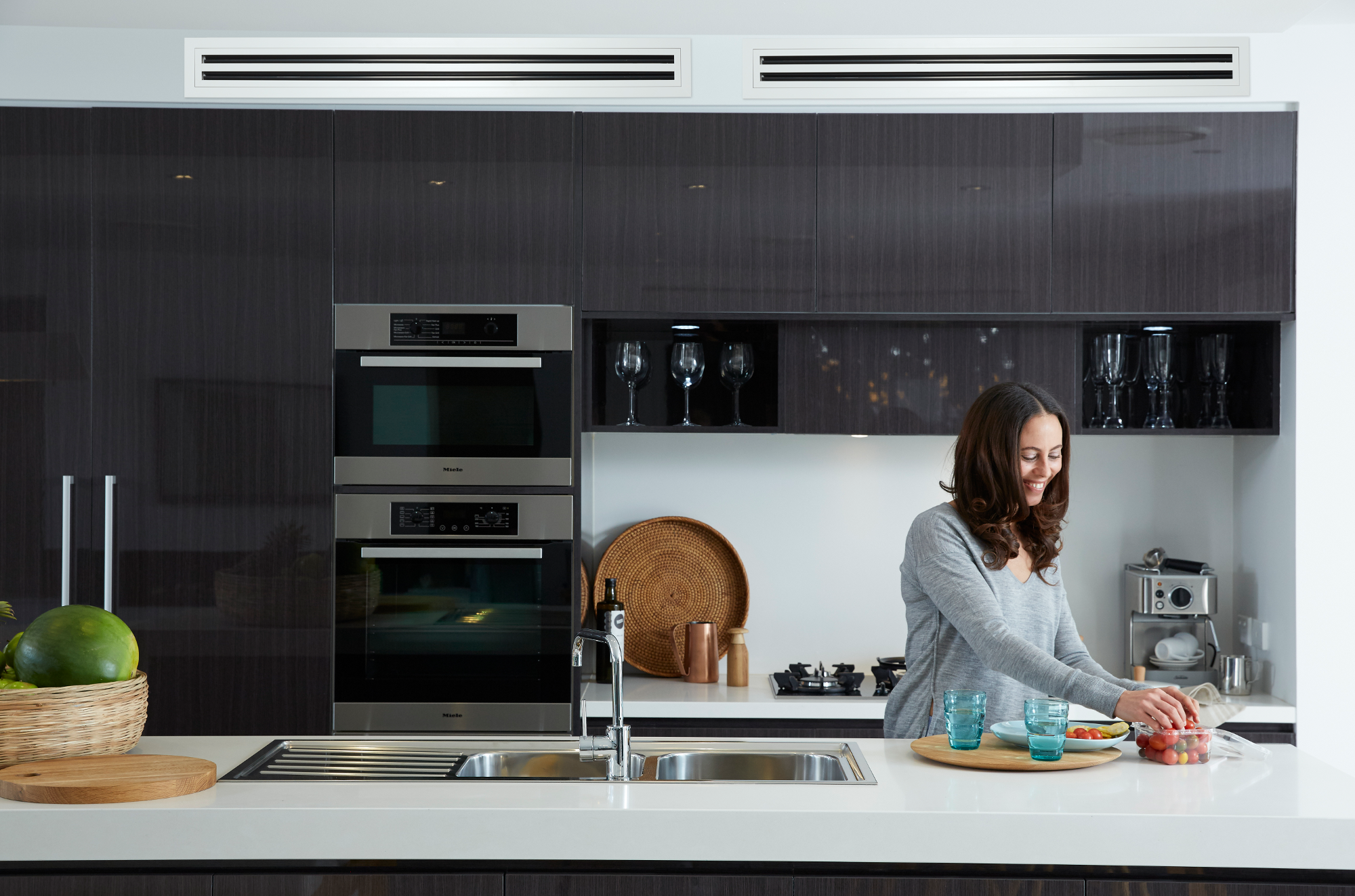

A Daikin ducted system provides discreet air conditioned comfort throughout your entire home. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.
