Superior Energy Performance

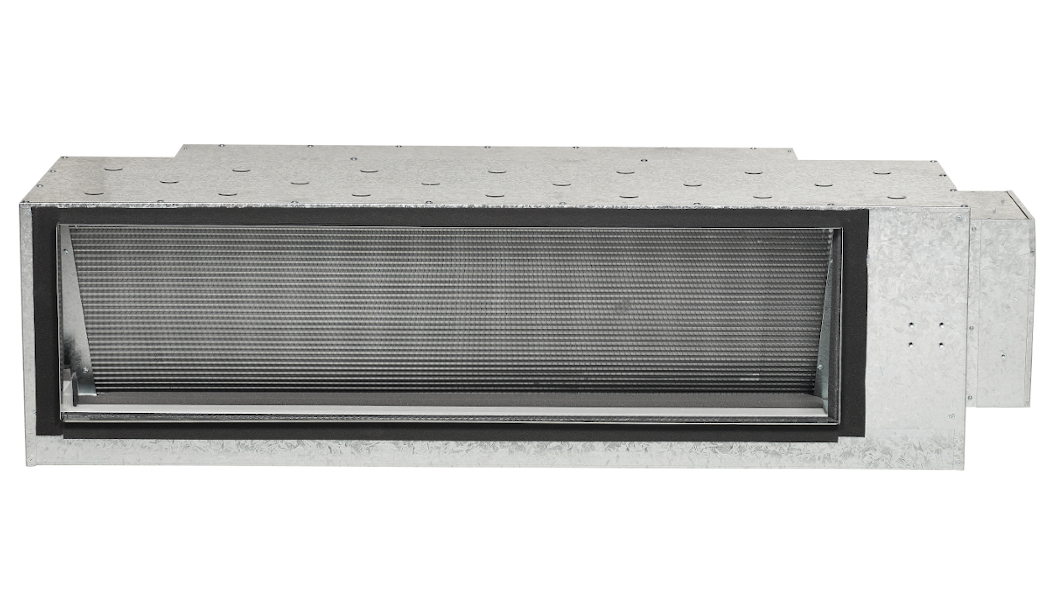

Premium Inverter Ducted

Engineered to deliver remarkable energy performance, design flexibility and R22 retrofit capability, the Premium Inverter series is the ultimate ducted solution.

1000
5000
Features Controllers Technologies Tech Specs Brochures
Premium Inverter Ducted

  • Available in
    Reverse Cycle (Heating & Cooling)
  • Capacities
    7.1kW, 8.5kW, 10.0kW, 12.5kW, 14.0kW, 16.0kW, 18.0kW, 20.0kW, 24.0kW
  • Refrigerant
    7.1-16.0kW: R32 / 18.0-24.0kW: R410A
Daikin Premium Inverter provides superior comfort in next to no time. Engineered to deliver remarkable energy performance, design flexibility and R22 retrofit capability, the Premium Inverter Ducted range is perfect for providing discreet air conditioned comfort throughout your entire home.

Warranty info

Sensitive Choice
Proudly
Australian Made
learn more

Through our commitment to expand local manufacturing capability, Daikin Australia are proud to announce that a range of products have successfully gained Australian Made certification.

Learn More

Key Features

It's the unique features of Daikin products that makes us the world leader.

Indoor Outdoor
  • Industry Leading

    Industry Leading Energy Performance

    Achieved with a redesigned cross-pass heat exchanger, DC fan motor and improved refrigerant control technology.

  • Night Quiet Mode

    Night Quiet Mode

    Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.

  • Wide-Capacity Limit

    Increased Operation Limits

    The refrigerant cooled PCB technology incorporated in the outdoor unit enables continuous operations up to 50°CDB ambient.

  • Powerful Heating

    Heating Focus Option

    Heating Focus models are available from 18.0-24.0kW with improved heating performance, ideal for cold climates such as Canberra, Hobart & Melbourne.

  • R22-Retrofit Capability

    R22 Retrofit Capability

    Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (not available for Heating Focus models).

  • Australian-Made

    Australian Made

    Indoor units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate.

MEPS
Minimum Energy
Performance Standards
learn more

All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.

Retrofit
R22 RETROFIT
CAPABILITY
learn more

The Daikin Premium Inverter can be retrofitted onto an existing R22 system by simply replacing both the indoor and outdoor units whilst retaining the field piping intact*.

Controllers

Daikin AirHub
Intuitive Display

Touch Operation

7” colour resistive touch screen interface housed in a contemporary casing design with a matte white finish.

Design-Flexibility 2

Two Versions

Both On/Off or Linear Control options available in either a 4 or 8 zone design. For details on these control methods, see brochure.

WiFI

Optional Wireless Sensors

Wireless remote temperature sensors are available, ideal for homes with internal brick walls.

On-Off Timer

On/Off Timer

Program on and off times within the day to suit your needs.

Weekly-Schedule Timer

Weekly Schedule Timer

Program on and off times, including when to open/close zones and the temperature sensor to use for On/Off Control option.

Improved Energy Efficiency

Eco Settings

Setpoint Range Limit, Setpoint Auto Reset and Auto Off Timer enables you to easily reduce your system's energy consumption.

Daikin Airbase
Countdown-On-Off Timer

Countdown On/Off Timer

Quick and easy means to set up the operations of your unit.

Filter Cleaning Reminder

Filter Cleaning Reminder

Automatic notification when filter cleaning may be required.

Operation Mode Theming

Operation Mode Theming

Each operation is colour-coded for easy association

Multiple Zone Control

Multiple Zone Control

Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Requires Zone Controller)

Countdown On Off Timer

Zone On / Off

Turn on or off the zones in your home (requires Zone Controller)

Multiple Zone Control

Enter Zone Names

Customize the name of the zones through your home. (Zone Controller Required)

Nav Ease Controller
Backlit-Display

Backlit Display

Clear large, easy to read text with a intuitive interface.

Weekly-Schedule Timer

Weekly Schedule Timer

Program on and off times to suit your lifestyle.

Home Leave Function

Home Leave Function

Automatically turns your air conditioner on when the room temperatures drops below 10°C.

Quick Cool Heat Mode

Quick Cool/Heat Mode

Temporarily increase air conditioning power to rapidly reach your desired set point temperature.

Temperature Limit

Temperature Limit

Predefine a temperature range for cooling or heating cycles for reduced energy consumption.

Off Timer Feature

Off Timer Feature

Automatically turns you air conditioner off after operating for a predefined time (30-180 mins).

Zone Controller
Countdown-On-Off Timer

Countdown On/Off Timer

Quick and easy means to set up the operations of your unit.

Backlit-Display

Backlit Display

Clear large, easy to read text with a intuitive interface.

Multiple Zone Control

Multiple Zone Control

Control up to 8 zones, each zone can be turned on or off depending on your requirements. (Requires Zone Controller)

7-Day-Time Clock

7 Day Time Clock

Program on and off times, including when to open/close zones and the temperature sensor to use.

Automatic-Operation

Automatic Mode Changeover

Allows the unit to automatically switch between heating and cooling for year round comfort.

Filter Cleaning Reminder

Filter Cleaning Reminder

Automatic notification when filter cleaning may be required.

Daikin AirHub

Daikin Airbase

Nav Ease Controller

Zone Controller

5 year
5 Year Warranty
learn more

Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia

PREMIUM INVERTER DUCTED Technology

1 2 3 4
R32 Refrigerant
R32 Refrigerant
More Info

Mindful of the environment and climate impact of its products, Daikin has taken the lead when it comes to shifting to refrigerants with a lower environmental impact.

Learn More

Ducted Systems

A Daikin ducted system provides discreet air conditioned comfort throughout your entire home. It can be installed in a new home or tailored to suit an existing one, and once installed, only the controller, the return air and discharge grilles are visible inside your home.
Download Brochure

Technical Specifications

Available Options:

  • System: Reverse Cycle
  • Capacities: 7.1kW, 8.5kW, 10.0kW, 12.5kW, 14.0kW, 16.0kW, 18.0kW, 20.0kW, 24.0kW
  • Indoor Type: Ducted
  • Power Supply: 1 Phase, 220-240v, 50Hz or 3 Phase, 380-415v, 50Hz
  • Refrigerant: 7.1-16.0kW: R32 / 18.0-24.0kW: R410A

Show Full Tech Specs

  • Single Phase
  • Three Phase
Indoor Unit FDYA71AV19 FDYA85AV19 FDYA100AV19 FDYA125AV19 FDYA140AV19 FDYA160AV19
Outdoor Unit RZAS71C2V1 RZAS85C2V1 RZAS100C2V1 RZAS125C2V1 RZAS140C2V1 RZAS160C2V1
Rated Capacity Cool (kW) 7.1 8.5 10.0 12.5 14.0 16.0
  Heat (kW) 7.5 10.0 12.5 15.0 16.5 18.0
Capacity Range Cool (kW) 3.2-8.0 3.7-10.0 5.0-11.2 5.0-14.0 5.0-16.0 7.3-17.0
  Heat (kW) 2.2-9.0 3.0-11.2 5.1-14.0 4.1-16.0 6.7-18.0 7.0-20.0
Power Input (Rated) Cool (kW) 1.90 2.35 2.61 3.45 3.93 4.85
  Heat (kW) 1.75 2.46 3.13 3.80 4.28 4.65
E.E.R/C.O.P C/H 3.74/4.29 3.62/4.07 3.83/3.99 3.62/3.95 3.56/3.86 3.30/3.87
TCSPF (Residential) Hot/Average/Cold 5.20/4.50/4.55 4.99/4.40/4.45 4.69/4.22/4.25 4.96/4.47/4.59 5.00/4.54/4.67 4.77/4.37/4.55
HSPF (Residential) Hot/Average/Cold 4.79/4.34/3.86 4.43/4.04/3.60 4.43/4.07/3.62 4.72/4.08/3.45 5.01/4.12/3.41 4.55/3.97/3.41
Airflow Rate (Nominal/Max) l/s  425/566 580/600 680/800 755/840 900/1000 950/1120
Indoor Sound Level (H) @ 1.5m dBA (C/H) 37.3/40.5 42.0/42.5 42.3/45.0 44.8/46.2 45.9/47.4 47.2/49.6
Piping Length m 75
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 300x1210x900 360x1520x935 400x1505x980
  Outdoor (mm) 990x940x320 1430x940x320
Weight Indoor (kg) 40 41 46 56 60 60
  Outdoor (kg) 69 78 93 93 93 99
Power Supply  V/Hz 1 Phase, 220-240V, 50Hz
Compressor Type   Hermetically Sealed Swing Type
Refrigerant   R32
Pipe Sizes Liquid (mm) 9.5 (Flared)
  Gas (mm) 15.9 (Flared)
  Drain (mm) ID 25 / OD 32
Supply Air Opening  mm (HxW, Flange) 185x852 245x1152 295x1152
Return Air Opening  mm 1x400 (Oval) 2x350 (Oval) 2x400 (Oval)
Outdoor Operating Range  Cool (°CDB) -5 to 50
  Heat (°CWB) -15 to 16
EPA Sound Power Level  dBA 67 71 70 71 73 75
Outdoor Sound Level (H) @ 1m Pressure dBA (C/H) 48/50 52/53 51/53 52/54 54/56 56/58



Indoor Unit FDYQ180LCV1 FDYQ200LCV1 FDYQ250LCV1 FDYQ180LCV1 FDYQ200LCV1 FDYQ250LCV1
Outdoor Unit RZYQ7T2Y1 RZYQ8TY1 RZYQ10TY1 RZYQ7TA2Y1 RZYQ8TAY1 RZYQ10TAY1
Rated Capacity Cool (kW) 18.0 20.0 24.0 18.0 20.0 24.0
  Heat (kW) 20.0 22.4 26.8 20.0 22.4 26.8
Capacity Range Cool (kW) 9.0-20.0 10.0-22.4 11.7-24.0 9.0-20.0 10.0-22.4 11.7-24.0
  Heat (kW) 10.0-22.4 11.2-25.0 13.4-26.8 10.0-22.4 11.2-25.0 13.4-26.8
Power Input (Rated) Cool (kW) 5.61 6.08 7.47 5.60 6.08 7.47
  Heat (kW) 5.81 6.17 8.14 5.81 6.17 8.14
E.E.R/C.O.P C/H 3.21/3.44 3.29/3.63 3.21/3.29 3.21/3.44 3.29/3.63 3.21/3.29
TCSPF (Residential) Hot/Average/Cold 3.80/3.26/3.22 3.87/3.35/3.32 3.98/3.50/3.51 3.79/3.23/3.18 3.86/3.32/3.29 3.97/3.48/3.48
HSPF (Residential) Hot/Average/Cold 3.21/3.15/3.02 3.42/3.35/3.20 3.60/3.37/3.15 3.21/3.15/3.02 3.42/3.35/3.20 3.60/3.37/3.15
Airflow Rate (Nominal/Max) l/s 1160/1200 1200/1300 1400/1600 1160/1200 1200/1300 1400/1600
Indoor Sound Level (H) @ 1.5m dBA (C/H) 45.0/45.0 44.0/44.0 46.0/46.0 45.0/45.0 44.0/44.0 46.0/46.0
Piping Length m 150 165
Indoor Fan Speeds   H/M/L
Dimensions (HxWxD) Indoor (mm) 470x1200x997 470x1400x997 470x1200x997 470x1400x997
  Outdoor (mm) 1657x930x765
Weight Indoor (kg) 70 79 85 70 79 85
  Outdoor (kg) 192 192 203 185 185 200
Power Supply  V/Hz 3 Phase, 380-415V, 50Hz
Compressor Type   Hermetically Sealed Scroll Type
Refrigerant   R410A
Pipe Sizes Liquid (mm) 9.5 (Brazed)
  Gas (mm) 19.1 (Brazed) 22.2 (Brazed) 19.1 (Brazed) 22.2 (Brazed)
  Drain (mm) BSP 3/4 inch Internal Thread BSP 3/4 inch Internal Thread
Supply Air Opening  mm (HxW, Flange) 350x918 350x1118 350x918 350x1118
Return Air Opening  mm 393x918 (Flange) 393x1118 (Flange) 393x918 (Flange) 393x1118 (Flange)
Outdoor Operating Range  Cool (°CDB) -5 to 49
  Heat (°CWB) -20 to 16
EPA Sound Power Level  dBA - - - 76 76 78
Outdoor Sound Level (H) @ 1m Pressure dBA (C/H) 56/56 56/56 57/57 56/56 56/56 57/57
