BULKHEAD SYSTEM
-
Available inReverse Cycle (Heating & Cooling)
-
Capacities2.4kW, 3.4kW, 5.0kW, 6.0kW
-
RefrigerantR410A
The Bulkhead range is the ideal choice for air conditioning areas where a discreet installation is preferred.

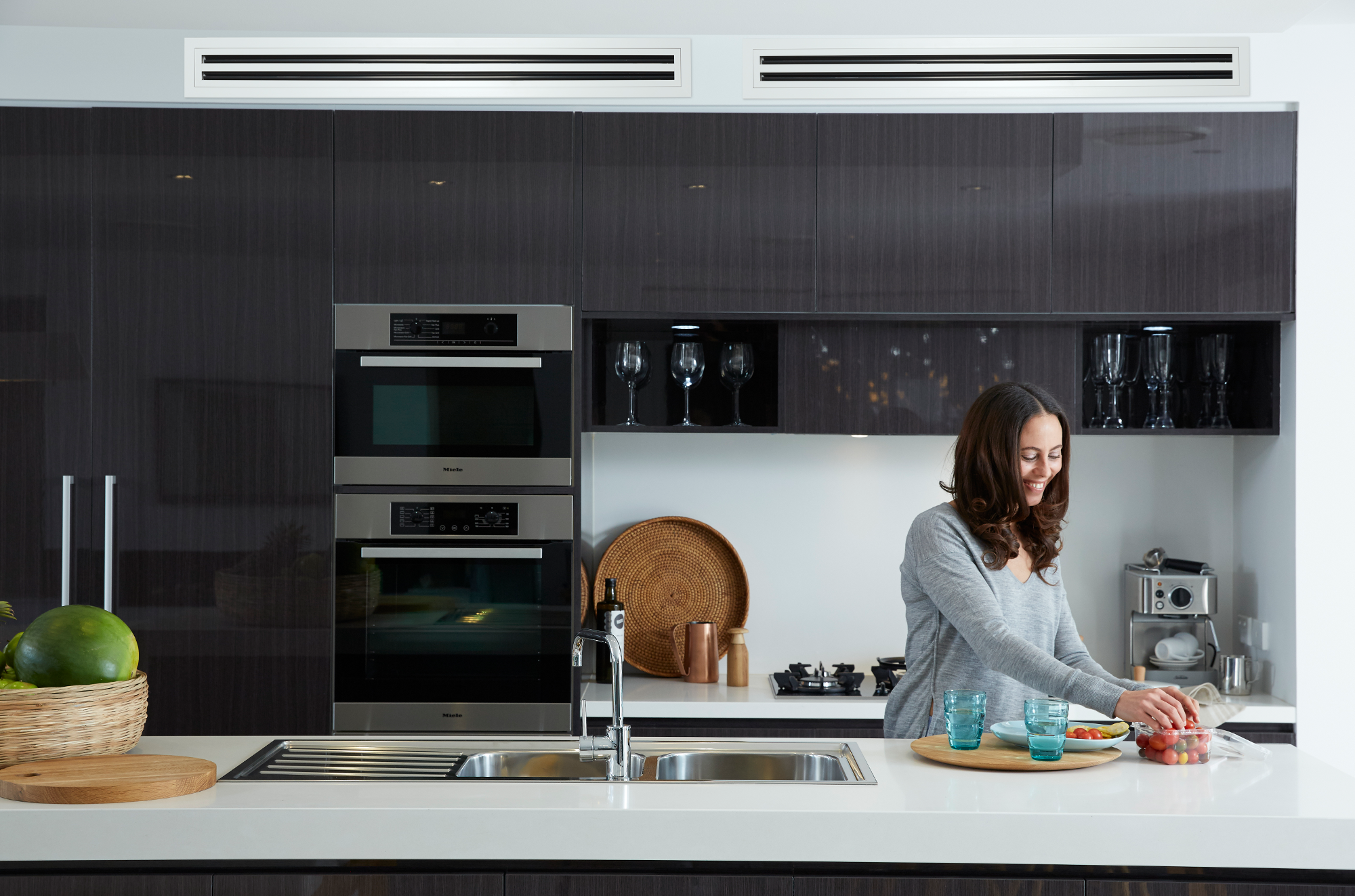

The indoor unit fits flush into the ceiling with only the suction air and discharge grilles visible inside your home and leaving maximum floor and wall space for furniture, decoration and fittings.
The Bulkhead range is truly discreet with whisper quiet operations to ensure limited impact to internal room aesthetics and acoustics.
Minimum Energy
Performance Standards
learn morePerformance Standards
All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
Key Features
It's the unique features of Daikin products that makes us the world leader.
-
Ultra Compact
Compact form factor - measuring at 200mm (H) and 620mm (D), makes it suitable for a variety of applications.
-
Quiet Operation
Noise levels are truly discrete and whisper quiet at 35dBA (25 Class Model).
-
Auto Fan Speed
An optimal fan speed is automatically selected to suit the set temperature for a more efficient operation.
-
Flexible Return Air
Option of a rear or bottom suction return allows for greater installation flexibility.
-
Night Set Mode
Temperatures are gently adjusted to prevent excessive cooling/heating for a more pleasant night's sleep.
-
Standby Power Function
Automatically reduces energy consumption when the system is not in use.
Controllers
Intuitive Display
Clear large, easy to read text with a simple clean interface.
On/Off Timer
Program on and off times within the day to suit your needs.
Powerful Mode
Gives a boost in cooling or heating for 20 minutes beyond normal capacity.
Program Dry Function
Automatic intelligent airflow and temperature control to reduce room humidity.
Quiet Mode
Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.
Econo Mode
Power consumption of the system is limited to prevent tripping your circuit breaker.
5 Year Warranty
learn more
Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia
BULKHEAD SYSTEM Technology
Technical Specifications
Available Options:
- System: Reverse Cycle
- Capacities: 2.4kW, 3.4kW, 5.0kW, 6.0kW
- Indoor Type: Bulkhead
- Power Supply: 1 Phase, 220-240, 50Hz
- Refrigerant: R410A
| Indoor Unit | FDXS25LVMA | FDXS35LVMA | FDXS50LVMA | FDXS60LVMA | |

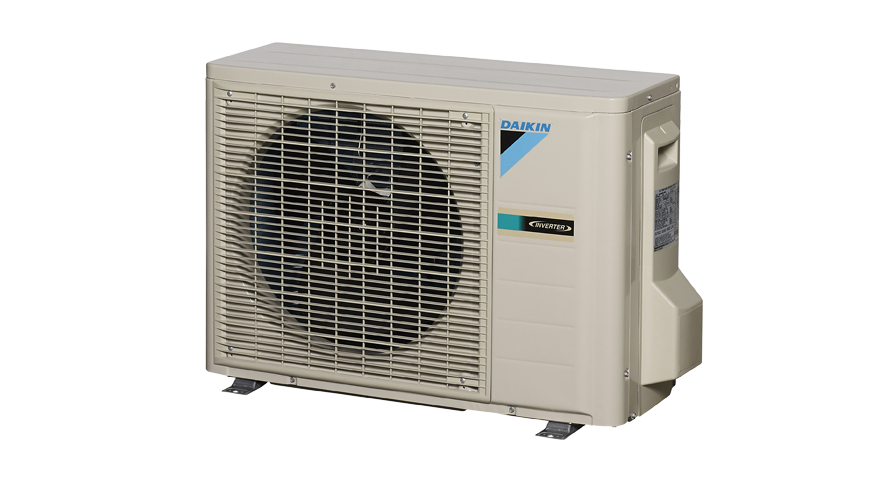

| Outdoor Unit | RXS25LBVMA | RXS35LBVMA | RXS50LBVMA | RXS60LBVMA | |
| Rated Capacity | Cool (kW) | 2.4 | 3.4 | 5.0 | 6.0 |
| Heat (kW) | 3.2 | 4.0 | 5.8 | 7.0 | |
| Capacity Range | Cool (kW) | 1.3-3.0 | 1.4-3.8 | 2.3-5.3 | 3.0-6.5 |
| Heat (kW) | 1.3-4.5 | 1.4-5.0 | 2.3-6.0 | 3.0-8.0 | |
| Power Input (Rated) | Cool (kW) | 0.69 | 1.03 | 1.5 | 1.91 |
| Heat (kW) | 0.91 | 1.14 | 1.72 | 2.17 | |
| E.E.R/C.O.P | C/H | 3.48/3.52 | 3.30/3.51 | 3.33/3.37 | 3.14/3.23 |
| Airflow Rate (Rated) | l/s | 158 | 200 | 267 | 267 |
| Indoor Sound Level (H) @ 1.5m | dBA | 35 | 37 | 38 | 38 |
| Piping Length | m | 20 | 30 | ||
| Indoor Fan Speeds | 5 Steps, Quiet and Automatic | ||||
| Dimensions (HxWxD) | Indoor (mm) | 200x900x620 | 200x1100x620 | ||
| Outdoor (mm) | 550x765x285 | 770x900x320 | 990x940x320 | ||
| Weight | Indoor (kg) | 25 | 27 | 30 | 30 |
| Outdoor (kg) | 34 | 34 | 71 | 80 | |
| Power Supply | V/Hz | 1 Phase 220-240V, 50Hz | |||
| Compressor Type | Hermetically Sealed Swing Type | ||||
| Refrigerant | R410A | ||||
| Pipe Sizes | Liquid (mm) | 6.4 (Flared) | 9.5 (Flared) | ||
| Gas (mm) | 9.5 (Flared) | 15.9 (Flared) | |||
| Drain (mm) | ID 20 / OD 26 | ||||
| Supply Air Opening | mm (HxW, Flange) | 153x860 | 153x1060 | ||
| Return Air Opening | mm (HxW, Flange) | 160x780 | 160x980 | ||
| Outdoor Operating Range | Cool (°CDB) | 10 to 46 | |||
| Heat (°CWB) | -15 to 18 | ||||
| EPA Sound Power Level | dBA | 62 | 63 | 65 | 68 |
| Outdoor Sound Level (H) @ 1m | Pressure dBA (C/H) | 47/48 | 49/49 | 50/51 | 52/54 |
This Product is
Australian Made
learn moreAustralian Made
Our Ducted system indoor units are manufactured in our Sydney manufacturing facility and are accredited to bear the Australian Made logo.
