ALTHERMA BI-BLOC
-
Available inReverse Cycle (Heating & Cooling)
Heating Only -
CapacitiesReverse Cycle: 11.2kW, 14.0kW, 16.0kW
Heating Only: 11.2kW, 14.0kW, 16.0kW -
RefrigerantR410A
Daikin Altherma Bi-Bloc is a highly flexible, energy efficient home heating system developed to provide homes with a total heating solution. With rising energy costs and high environmental impact, Daikin Altherma Bi-Bloc addresses these concerns with an all-in-one indoor space heating and domestic hot water heating system.

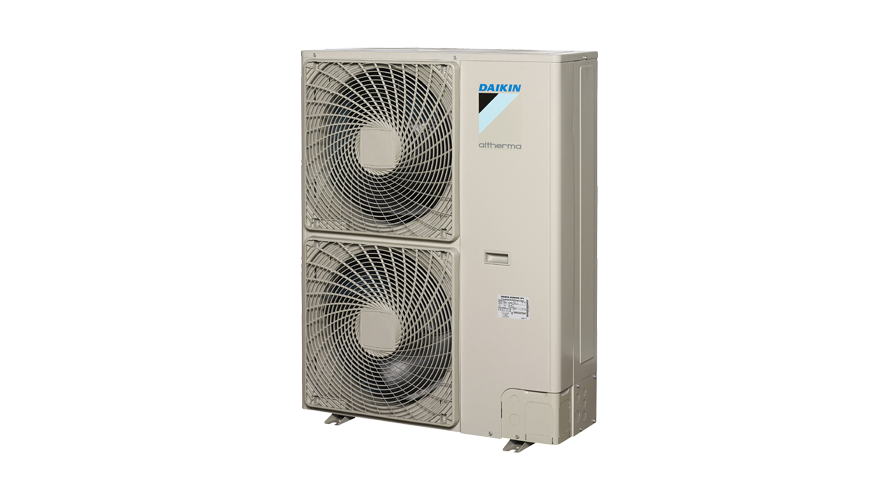

This system extracts heat from the outside air, raises its temperature and transfers the heat to the indoor hydrobox for water circulation in the underfloor heating circuit, radiators or fan coil units.
With low operating costs thanks to high efficiency without compromising on comfort, it is the perfect fit for new builds, as well as for low-energy homes.
Minimum Energy
Performance Standards
learn morePerformance Standards
All Daikin air conditioners exceed MEPS requirements, in line with Daikin’s commitment to providing energy efficient, quiet, simple to use and reliable air conditioning solutions.
Key Features
It's the unique features of Daikin products that makes us the world leader.
-
Efficient Heating
Only requires 1kW of electricity to pump 3-5kW of heat into your home, much more efficient compared to gas heating.
-
Electric Booster Heater
In the event of insufficient heating capacity, Altherma is equipped with a back up heater to cover the short fall.
-
Flexible Connection
Altherma is compatible with 3rd party fan coils, radiators and underfloor heat emitters.
-
No Gas Connections
Altherma works without the need for oil, flammable gas or other hazardous substances thus reducing the risks that these fuels may create.
-
Wall Mounted Hydrobox

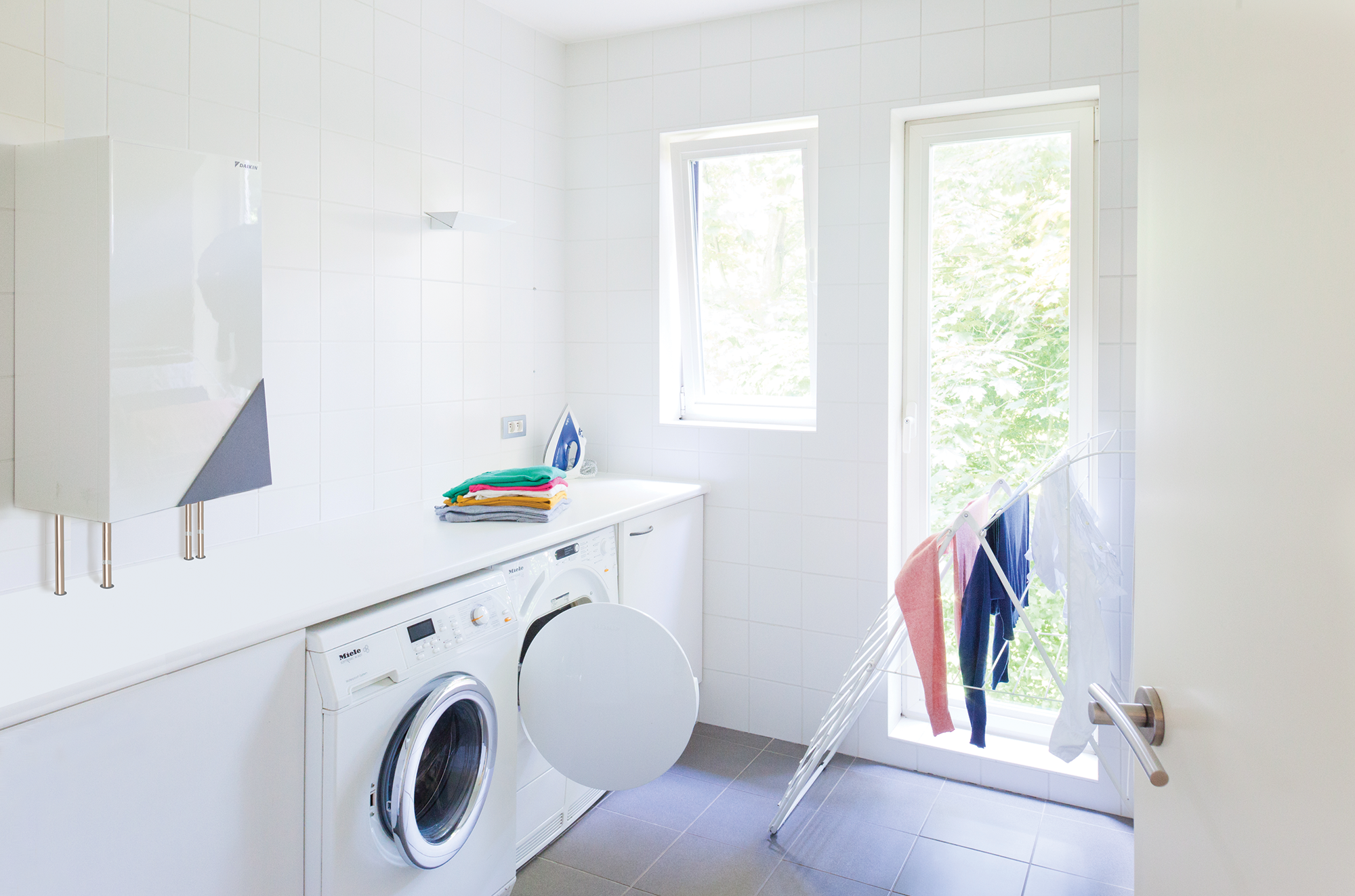

Hydrobox can be wall mounted and concealed in cupboards to maintain interior décor.
-
Domestic Hot Water
Altherma's design can be extended to provide domestic hot water over and above your comfort requirements by incorporating a domestic hot water tank.
Controllers
Operation Timers
Schedule your unit to operate automatically throughout the day or week to suit your lifestyle.
Quiet Mode
Operation sound levels are reduced by 2-3dBA for quieter heating and cooling.
Holiday Mode
Deviates from your normal schedules to your select holiday operation schedule.
Error diagnosis
If malfunction occurs, information is displayed via the controller.
Scheduled Mode
Domestic hot water can be scheduled for heating at night as space heating demand is lower.
Reheat Mode
Continuously reheats water to ensure that a minimum amount of hot water is available at all times.
5 Year Warranty
learn more
Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia
Technical Specifications
Available Options:
- System: Reverse Cycle or Heating Only
- Capacities: Reverse Cycle: 11.2kW, 14.0kW, 16.0kW, Heating Only: 11.2kW, 14.0kW, 16.0kW
- Indoor Type: Hydronic Cooling / Heating
- Power Supply: 1 Phase, 220-240, 50Hz
- Refrigerant: R410A
- Reverse Cycle
- Heating Only
| Indoor Unit (Hydro Box) | EHBX11CB3V | EHBX16CB3V | EHBX16CB3V | |
| Outdoor Unit | ERHQ011BAV3 | ERHQ014BAV3 | ERHQ016BAV3 | |
| Rated Capacity | Heat (kW) | 11.2 | 14.0 | 16.0 |
| Cool (kW) | 13.9 | 17.3 | 17.8 | |
| Rated Input | Heat (kW) | 2.55 | 3.26 | 3.92 |
| Cool (kW) | 3.86 | 5.86 | 6.87 | |
| Leaving water temperature range | Heat (°C) | 15 to 55 | ||
| Cool (°C) | 5 to 22 | |||
| Casing Material | Indoor (mm) | Precoated Sheet Metal | ||
| Outdoor (mm) | Painted Galvanised Steel Plate | |||
| Colour | Indoor | White | ||
| Outdoor | Ivory White | |||
| Electric booster heater (kW) | 3 | |||
| COP (Heating Efficiency) | 4.39 | 4.29 | 4.08 | |
| EER (Cooling Efficiency) | 3.6 | 2.95 | 2.59 | |
| Dimensions (HxWxD) | Indoor (mm) | 890x480x344 | ||
| Outdoor (mm) | 1170x900x320 | |||
| Weight | Indoor (kg) | 43 | 44 | 44 |
| Outdoor (kg) | 102 | |||
| Outdoor operation range | Heat (°C) | -20 to 35 | ||
| Cool (°C) | 10 to 46 | |||
| Refrigerant charge | R-410A (kg) | 2.7 | ||
| Power supply | 1 Phase, 230V, 50Hz | |||
| Indoor sound pressure level | (dBA) | 27 | 30 | 30 |
| Outdoor sound pressure level | Heat (dBA) | 49 | 51 | 53 |
| Cool (dBA) | 50 | 52 | 54 | |
| Outdoor EPA sound power level | Heat (dBA) | 64 | 64 | 66 |
| Cool (dBA) | 64 | 66 | 69 | |
| Sound pressure night quiet mode | Heat (dBA) | 42 | 42 | 43 |
| Cool (dBA) | 45 | 45 | 46 | |
| Indoor Unit (Hydro Box) | EHBH11CB3V | EHBH16CB3V | EHBH16CB3V | |
| Outdoor Unit | ERHQ011BAV3 | ERHQ014BAV3 | ERHQ016BAV3 | |
| Rated Capacity | Heat (kW) | 11.2 | 14.0 | 16.0 |
| Cool (kW) | - | |||
| Rated Input | Heat (kW) | 2.55 | 3.26 | 3.92 |
| Cool (kW) | - | |||
| Leaving water temperature range | Heat (°C) | 15 to 55 | ||
| Cool (°C) | - | |||
| Casing Material | Indoor (mm) | Precoated Sheet Metal | ||
| Outdoor (mm) | Painted Galvanised Steel Plate | |||
| Colour | Indoor | White | ||
| Outdoor | Ivory White | |||
| Electric booster heater (kW) | 3 | |||
| COP (Heating Efficiency) | 4.39 | 4.29 | 4.08 | |
| EER (Cooling Efficiency) | - | |||
| Dimensions (HxWxD) | Indoor (mm) | 890x480x344 | ||
| Outdoor (mm) | 1170x900x320 | |||
| Weight | Indoor (kg) | 43 | 44 | 44 |
| Outdoor (kg) | 102 | |||
| Outdoor operation range | Heat (°C) | -20 to 35 | ||
| Cool (°C) | - | |||
| Refrigerant charge | R-410A (kg) | 2.7 | ||
| Power supply | 1 Phase, 230V, 50Hz | |||
| Indoor sound pressure level | (dBA) | 27 | 30 | 30 |
| Outdoor sound pressure level | Heat (dBA) | 49 | 51 | 53 |
| Cool (dBA) | - | |||
| Outdoor EPA sound power level | Heat (dBA) | 64 | 64 | 66 |
| Cool (dBA) | - | |||
| Sound pressure night quiet mode | Heat (dBA) | 42 | 42 | 43 |
| Cool (dBA) | - | |||
