How to clean your L-Series split system air filter

Air Filter

  1. Pull out the air filters.
    • Open the front panel.
    • Push a little upwards the filter tab at the center of each air filter, then pull it down.
      How to clean your L-Series split system air filter
  2. Wash the air filters with water or clean them with vacuum cleaner.
    • It is recommended to clean the air filters every season.
      How to clean your L-Series split system air filter

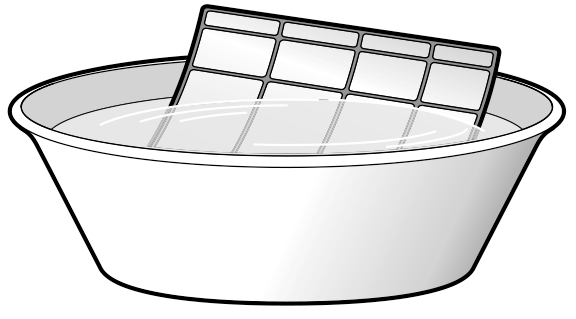

    If the dust does not come off easily

    • Wash the air filters with neutral detergent thinned with lukewarm water, then dry them up in the shade.
    • Be sure to remove the titanium apatite deodorising air-purifying filter.
      Refer to "Titanium apatite deodorising air-purifying filter" below
    How to clean your L-Series split system air filter
  3. Set the filters as they were and close the the front panel.
    • Press the front panel at both sides and the central area.
      How to clean your L-Series split system air filter

Titanium apatite deoderising air-purifying filter

  1. Take off the titanium apatite deoderising air-purifying filter.
    • Open the front panel and pull out the air filters.
    • Hold the recessed parts of the frame and unhook the 4 claws.
      Titanium apatite deoderising air-purifying filter
  2. Clean or replace the titanium apatite deoderising air-purifying filter.
  3. Maintenance

    1. Vacuum dusts, and soak in lukewarm water or water for about 10 to 15 minutes if dirt is heavy.
      • Do not remove the filter from frame when washing with water.
        Titanium apatite deoderising air-purifying filter
    2. After washing, shake off remaining water and dry in the shade.
      • Since the material is made out of polyester, do not wring out the filter when removing water from it.

    Replacement

    1. Hold the recessed parts of the frame and unhook the 4 claws.
      Titanium apatite deoderising air-purifying filter
      • Do not throw away the filter frame. Reuse the filter frame when replacing the titanium apatite deodorising air-purifying filter.
      • Dispose of the old filter as non-flammable waste.
  4. Set the filters as they were and close the front panel.
    • Press the front panel at both sides and the central area.
      Titanium apatite deoderising air-purifying filter

Note:

  • Operation with dirty filters:
    • cannot deoderise the air,
    • cannot clean the air,
    • results in poor heating or cooling,
    • may cause odour.
    • Dispose of old filtes as non-flammable waste.
    • To order titanium apatite deodorising air-purifying filter contact to the service shop there you bought the air conditioner.
